MEGA DUTY DROP

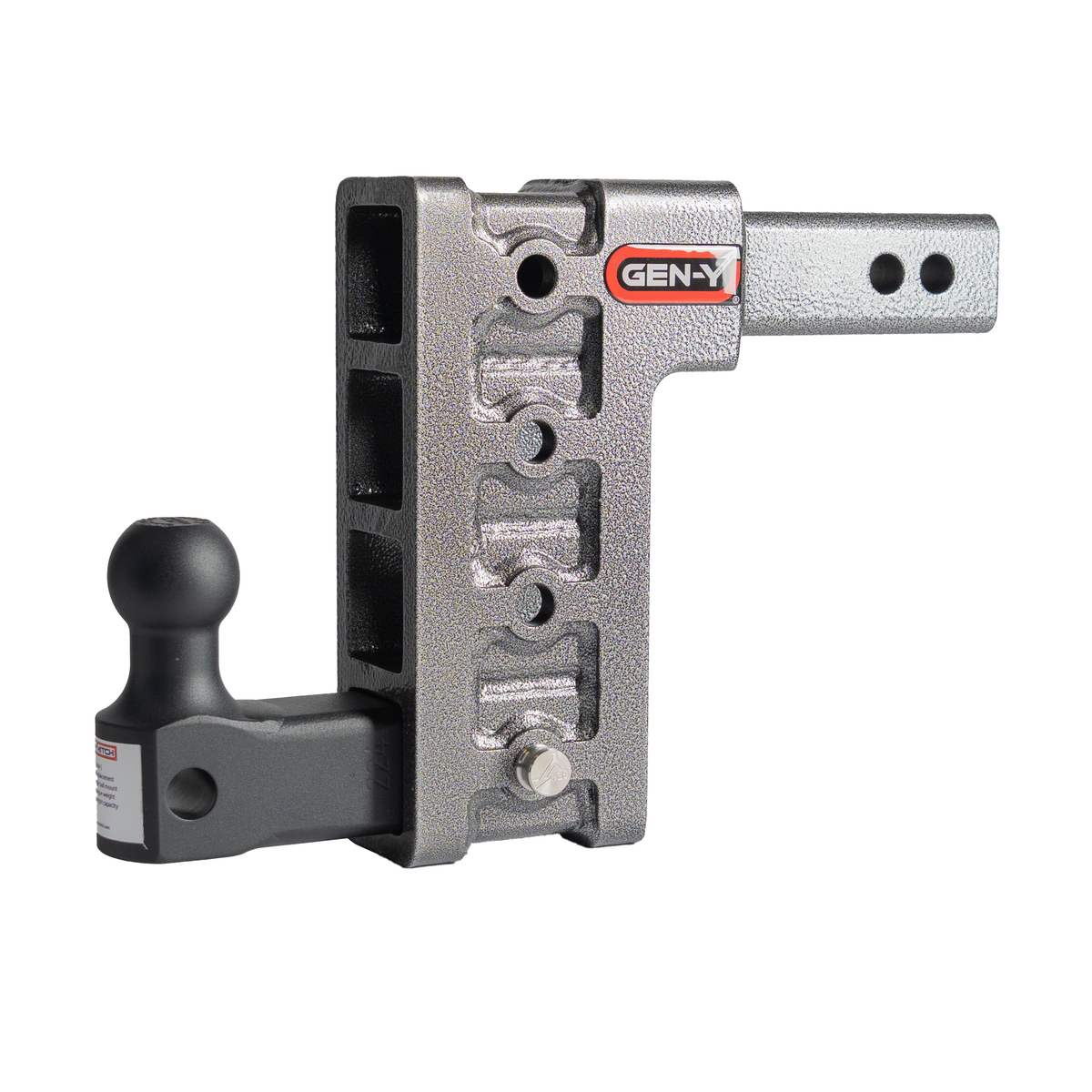

The Mega Duty Drop Hitch
The Mega Duty Drop Hitch range is a premium heavy-duty adjustable tow hitch designed for serious towing applications including caravans, trailers, horse floats, boats and heavy-duty trailers. Delivering strength and versatility and built for demanding Australian towing conditions, the Drop hitch is an ideal tow hitch upgrade for 4WDs, utes and American trucks.
- Available in 3,500 kg, 4,500 kg & 7,000 kg towing capacities.
- 2.5" to 17.5" Drop/Rise available (2 through to 8 adjustable positions).
- Fully reversible.
- Stabilizer bars available.
- Available in 2″ and 2.5" receiver.
- Comes with a 50mm Ball, a 50mm/70mm Versa Ball, or an Australian Tongue for DO35 or DO45 applications.
Made in the USA
Satisfaction Guaranteed
5-year warranty
Pintle and bumper-pull
-
1
Park level
Vehicle and trailer on flat ground. Drawbar level, loaded as you normally tow.
-
2
Measure two heights
A is the centre of the towbar receiver to the ground. B is the bottom of the coupling to the ground.
-
3
Take the difference
If the towbar is higher, you need a drop. If the coupling is higher, you need a rise. Then add 25mm for suspension sag. Gen-Y hitches work in either direction.
-
4
Choose your hitch
Each hole on a Gen-Y torsion hitch moves the ball 2½″, about 64mm, higher or lower. A 4-hole hitch covers a 5″ drop, a 5-hole covers 7½″, and a 6-hole covers 10″.
Example. Towbar 600mm, coupling 500mm. 600 − 500 = 100mm drop. 100 + 25 = 125mm, about 5″.
